Name: 22mm Swirl Flap blanks
Item: Swirl Flaps
Kit Parts Included: 1pcs 22mm Swirl Flap blanks
Manufacturer Part Number: TKXLB001A
Fitment Type: Direct Replacement
Life Cycle Status Description: Available to Order
Feature: Unsurpassed quality you can trust
Kit or Single Part: Single Part
Replace: Intake manifold gasket.
You are buying on 100% Brand New of:

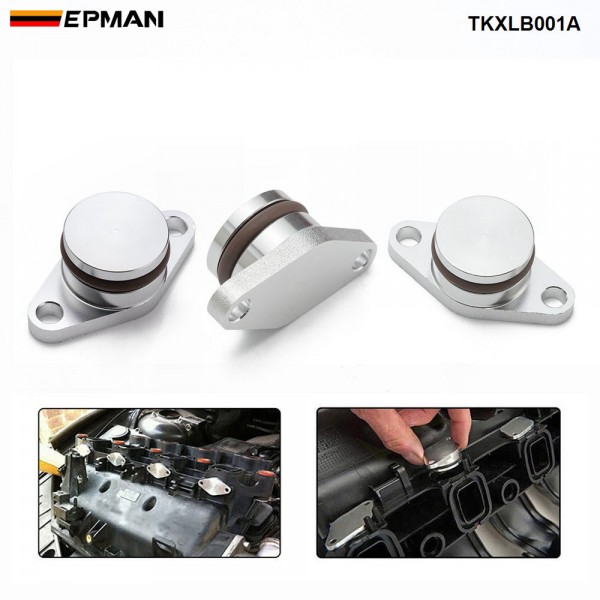

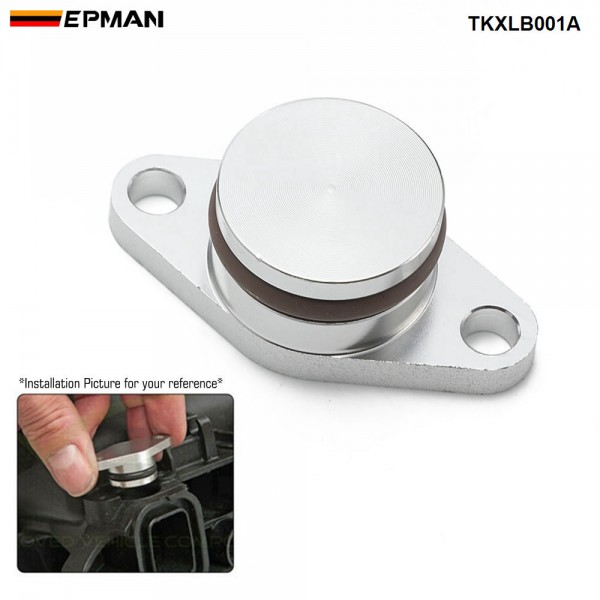

EPMAN 1 x 22MM Aluminium Swirl Flap Blanking Replacement Bungs For BMW 20MM 320 330 520 530 525 535 730D Intake Manifold TKXLB001A
Which size do I need 22mm or 33mm?
Our Swirl Flap blanks are available in 22mm and 33mm size (some refer to 33mm as 32mm they are the same thing).
it is difficult to determine which size swirl flaps your vehicle has
fitted and as such which size blanks you require.
a rule of thumb but far from guaranteed 22mm tend to be fitted on
vehicles up to 2004, 2004-2006 either size can be fitted and 2006 on
However over the years many exceptions have been found and For BMW do not hold data as to which are fitted to your vehicle.
We therefore advise measuring the swirl flaps in your manifold.

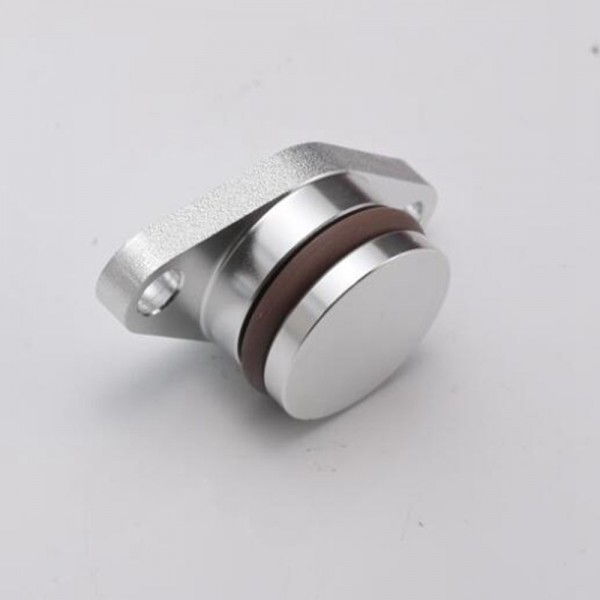

The bungs are machined from high grade aluminium using state of the art CNC technology.
Name: Swirl Flap Removal Repair Kit
Material: Aluminium /Rubber
1pcs 22mm Swirl Flap blanks
Fit BMW engine codes and models:
For E46 320d 2001-2005, E83 X3 2.0d (up to end of 2006)
For M47TU2D20 updated in 2004 to M47TU2D20
For E60/E61 520d, E87 120d, E90/E91 320d, E83 X3 2.0d - end of 2006 onwards
For revious M57 - 2000 onwards M57D25
For 2000-2003 E39 525d automatic transmission only.
For M57N/M57TU - 2004 onwards M57TUD25
For E60/E61 525d
For M57/M57D29 - 1998 onwards M57D30
For E39 530d automatic transmission only
For E46 330d/330xd automatic transmission only
For E38 730d automatic transmission only
For E53 X5 3.0d, E38 730d, E39 530d
For M57N/M57TU - 2002 onwards M57TUD30
For E46 330d/330Cd/330xd
For E83 X3 3.0d
For E53 X5 3.0d
For E60/E61 530d/530xd
For E65 730d
For E60/E61 535d
For M57TU2D30 M57TU2D30 - 2007 onwards, facelifted E60 and E61
For M57TU2D30-UL M57TU2D30-OL M57TU2D30-TOP
For E90/E91/E92 325d
For E60/E61 525d/525xd E65 730d
For E90/E91 325d
For E90/E91 330d/330xd
For BMW E70
For BMW E71
For E60/E61 535d
For E70 X5 3.0sd
For E71 X6 xDrive35d
For E83 X3 3.0sd

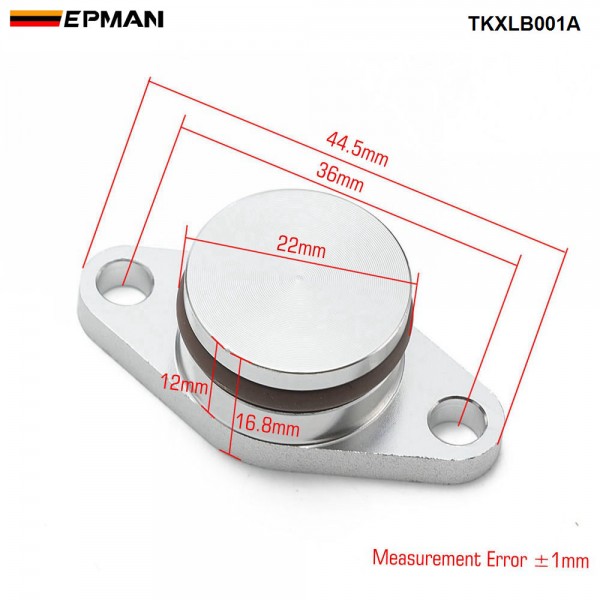

1. Please Use The Dimensions Listed To Check Your Sizes.
Light shooting and different displays may cause the color of the item
in the picture a little different from the real thing. Thanks for your
3. No installation Tool & No instruction is Included, Professional Installation Is Highly Recommended!
All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions.
We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
