EPMAN 2" 52mm Turbo Boost Oil Pressure Oil Temp Water Temperature Tachometer Volt Gauge EXT EGT Meter 10 Color Digital LED Display Car Meter EPXX701

  • Product Code:
  • Reward Points: 16
  • Availability: 5000000
  • Weight:0.60 kg
  • $16.00

  • Price in reward points: 16

  • 20 or more -4.1%

Available Options


Product Name: 52mm Car Gauge
Face Color: Black
Voltage: 12V
Manufacturer Part Number: RJX8977358
Contents of the package: 1 x Car meter (same as picture)
Sensor Thread Size: 1/8 NPT
Housing Color: Silver
Features: 10 colors backlight change
Quality: Excellent
Brand: EPMAN
Features: Waterproof Antifogging
Fitment Type: Direct Replacement
Application: Car Truck Motorbike Boat Yacht
Model Number: EPXX701/EPXX702/EPXX703/EPXX704/EPXX705/EPXX706/EPXX707/EPXX708/EPXX709


You are buying on 100% Brand New of:



EPMAN 2" 52mm Turbo Boost Oil Pressure Oil Temp  Water Temperature Tachometer Volt Gauge EXT EGT Meter 10 Color Digital LED Display Car Meter EPXX701/EPXX702/EPXX703/EPXX704/EPXX705/EPXX706/EPXX707/EPXX708/EPXX709




Features:
-2" (52mm) diameter gauge.
-Black dial face when ignition is off.
-10 colors backlights can be selected, and it can memory the setting in the both daytime and night mode.
-Brightness can be selected in 6 different levels, and it can memory the setting in the both daytime and night mode.

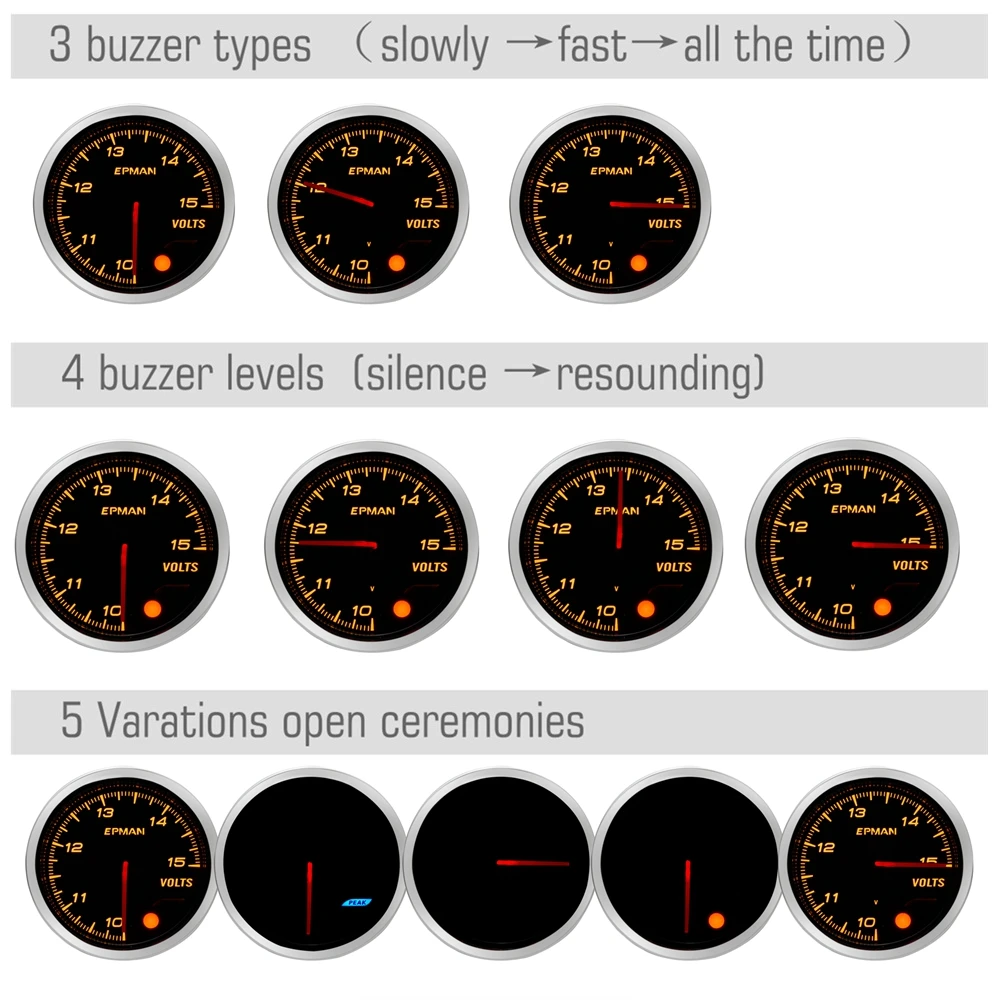

-3 buzzer types can be selected (slowly →fast→all the time).
-4 buzzer levels can be selected. (silence →resounding)
-5 Varations open ceremonies can be selected.

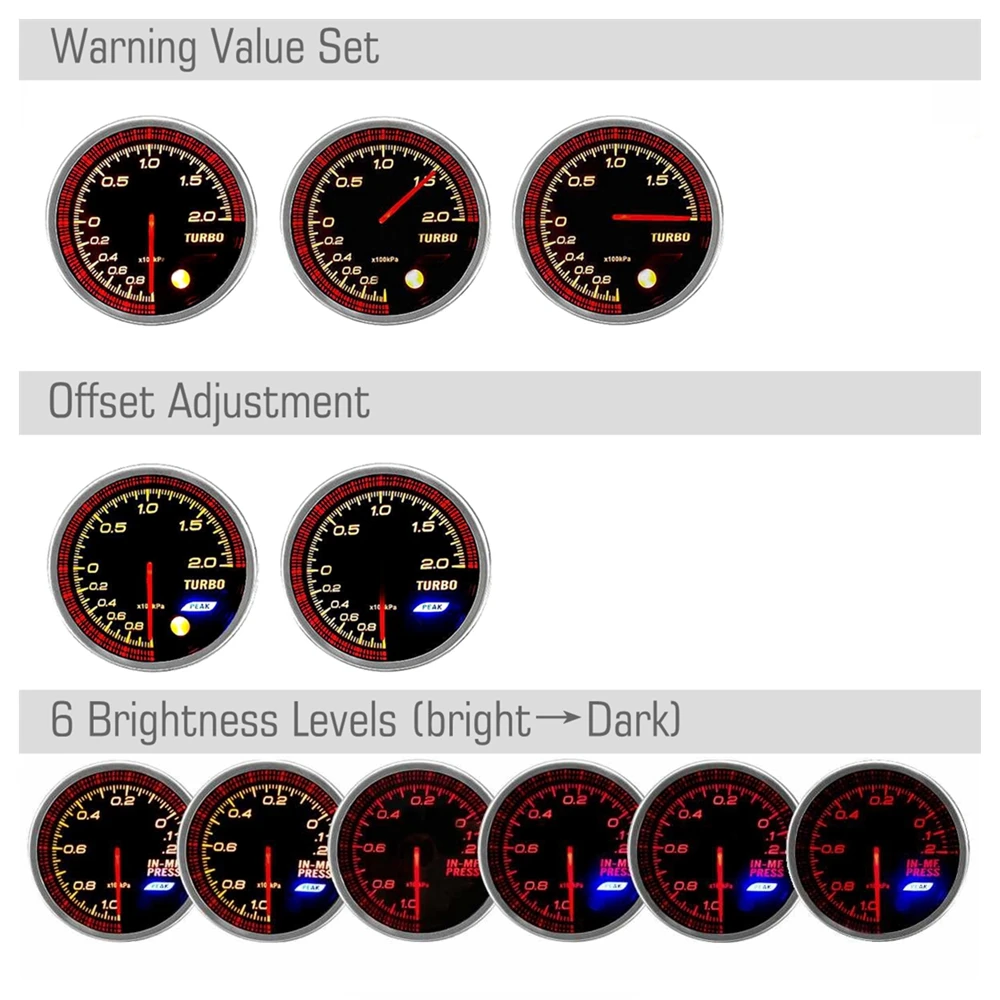

-A warning value (arbitrary) can be set and the warning buzzer can be selected from three variations or turn off.
-Data obtained during driving (top value and warning value) can be stored up, and the top value can be reviewed and cleared.
-Flat glass,high-definition scale and long,narrow pointer provides accurate indication and high visibility.
-Brushless stepping motor is used to enable a smooth, instantaneous response to high performance sport driving.

Common Button Operation:
1.There is a button in the backside of the gauge.They are used to review and clear top value,change the colors, adjust the brightness, choose the buzzer, set the warning etc.
2.Short press to switch between different functions settings,long press until buzzer sounds, then enter the setting mode.It will return to normal status when the button is released after 5 seconds.
Power Wires Connecting :
White wire : To 12V wire when ignition on
Red wire :To 12V battery wire
Yellow wire : To 12V wire when small lamp on
Black wire : To ground
Specification:
Model Number: EPXX701/EPXX702/EPXX703/EPXX704/EPXX705/EPXX706/EPXX707/EPXX708/EPXX709
Material: Aluminum
Housing Color: Silver
Face Color: Black
Bezel :Chrome
Voltage: 12V
Diameter Size: 2" (52mm)
Style: Red Needle Readout

9 Different Types Gauges

Water Temperature Gauge:
Reading range: 20~120℃
Sensor Thread Size : 1/8" NPT
Package includes:
1 x Water Temperature Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Temperature Sensor
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Water Temp Gauge
Part No.:EPXX702

Tachometer Gauge:
Reading range:0-9000RPM
Package includes:
1 x Tachometer Gauge
1 x Mount Bracket Cup
1 x Tachometer Signal Wire
1 x Meter Wire
1 x Power Supply Wire
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Tachometer Guage RPM
Part No.:EPXX706

Oil Press Gauge :
Reading Range: 0-10 x100kpa
Sensor Thread Size : 1/8" NPT
Package includes:
1 x Oil Press Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Sensor
1 x Sensor Wire
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Oil Press Gauge
Part No.:EPXX704

Oil Press Gauge :
Reading Range: 0-140PSI
Sensor Thread Size : 1/8" NPT
Package includes:
1 x Oil Press Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Sensor
1 x Sensor Wire
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Oil Press Gauge
Part No.: EPXX705
Volt Gauge:
Reading range: 10-15V
Package includes:
1 x Volt Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Volt Gauge
Part No.:EPXX701
Oil Temperature Gauge:
Reading range: 50~150℃
Sensor Thread Size : 1/8" NPT
Package includes:
1 x Oil Temperature Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Temperature Sensor
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Oil Temp Gauge
Part No.:EPXX703
Boost Gauge PSI:
Reading range: -30~+30PSI
Package includes:
1 x Boost Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Boost Sensor Wire
1 x Three Way Joint ID 4mm
1 x Rubber Hose ID 4mm
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Boost Gauge PSI
Part No.:EPXX708

Boost Gauge BAR:
Reading range: -1~2 x100kpa
Package includes:
1 x Boost Gauge
1 x Mount Bracket Cup
1 x Meter Wire
1 x Power Supply Wire
1 x Boost Sensor Wire
1 x Three Way Joint ID 4mm
1 x Rubber Hose ID 4mm
1 x Double Sided Tape
2 x Buffer
1 x English Manual
Boost Gauge Bar
Part No.: EPXX707
Exhaust Gas Temperature Gauge :
Reading range: 2-11 x100°C
Sensor Fitting Thread Size : 1/8" NPT
Package includes:
1 x Exhaust Tem Gauge
1 x Mount Bracket Cup
1 x Exhaust Temperature Sensor
1 x Fitting(1/8NPT)
1 x Meter Wire
1 x Power Supply Wire
1 x Double Sided Tape
2 x Buffer
1 x English Manual
EGT Temp Gauge
Part No.:EPXX709

EPXX70-2 newEPXX70-3

Note:
● The product is designed for use on 12v vehicles.Do not install this product on vehicles with 24v systems.
● Do not perform installation of this product immediately after the engine has been switched off. The engine and exhaust system are extremely hot at this time and can cause burns if touched.
● The LED color display of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
● Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
● Instructions Is Included.Professional Installation Is Highly Recommended!!If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.


All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions. We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
