| EPMAN Part No. | Turbo Model | Description |

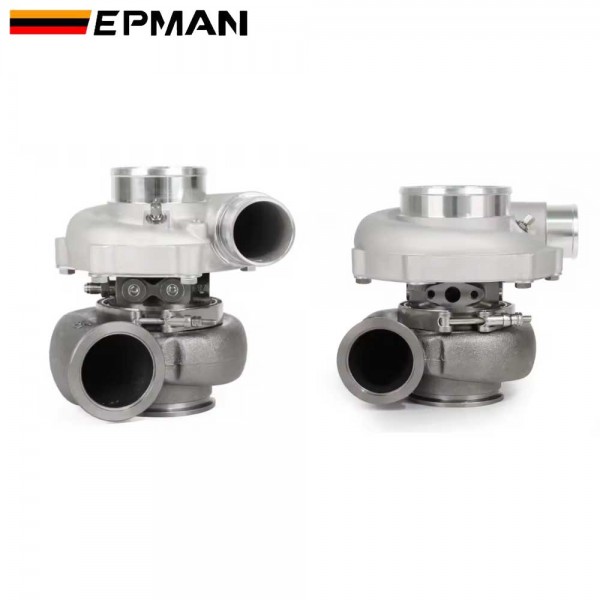

| EPAA33G001 | G30-770 | Part Number：880704
Turbo PN：880704-5005S,880704-5006S
Turbine Part Numbe：740902-0089,740902-0088,740902-0087,740902-0086,740902-001,740902-0090,740902-0092,740902-0100,740902-0101,740902-0096,740902-0097,740902-0098,740902-0099
SuperCore Part Number：880693-5002S,880694-5002S
Turbo Model：G30-770
Displacement：2.0L - 3.5L
HP：475/770
RPM Max：3000
Compressor Wheel Exducer: 71mm
Compressor Wheel Inducer: 58mm
Compressor Wheel Trim: 65
Compressor Wheel A/R 0.72
Turbine Wheel Exducer: 55mm
Turbine Wheel Inducer: 60mm
Turbine Wheel Trim 84
Turbine Wheel A/R 0.61
Bearing Type ：Ceramic Ball Bearing
Bearing Housing： Water Cooled |
| EPAA33G002 | G30-660 | Part Number： 880704
Turbo PN：880704-5002S,880704-5003S
Turbine Part Number：740902-0100,740902-0101,740902-0096,740902-0097,740902-0098,740902-0099
SuperCore Part Number 880694-5001S
Turbo Model：G30-660
Displacement：2.0L - 3.5L
HP：350/660
RPM Max：3000
Compressor Wheel Exducer: 67mm
Compressor Wheel Inducer: 54mm
Compressor Wheel Trim: 65
Compressor Wheel A/R 0.7
Turbine Wheel Exducer: 55mm
Turbine Wheel Inducer: 60mm
Turbine Wheel Trim 84
Turbine Wheel A/R 0.83, 1.01, 1.21
Wastegate Internal and External |

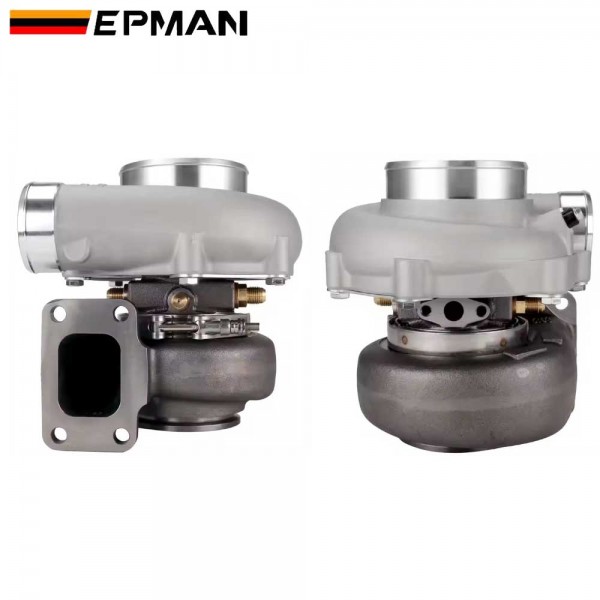

| EPAA33G003 | G30-900 | Part Number: 880704
Turbo PN: 880704-5008S,880704-5009S
Turbine Part Number: 740902-0089,740902-0088,740902-0087,740902-0086,740902-0091,740902-0090,740902-0092,740902-0100,740902-0101,740902-0096,740902-0097,740902-0098,740902-0099
SuperCore Part Number: 880693-5003S,880694-5003S
Turbo Model: G30-900
Displacement: 2.0L - 3.5L
HP: 550/900
RPM Max: 145000 RPM
Compressor Wheel Exducer: 76mm
Compressor Wheel Inducer: 62mm
Compressor Wheel Trim: 65
Compressor Wheel A/R: 0.72
Turbine Wheel Exducer: 55mm
Turbine Wheel Inducer: 60mm
Turbine Wheel Trim: 84
Bearing Type: Ceramic Ball Bearing
Bearing Housing: Water Cooled |

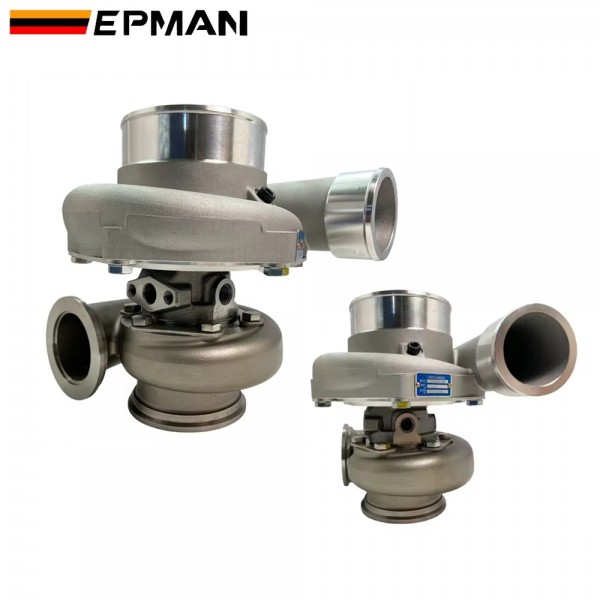

| EPAA33G004 | GTX3582R GT3582R Gen1 Gen 2 | Turbo Model: GTX3582R GT3582R Gen1 Gen 2
Compressor Housing A/R: 0.72
Turbine Housing A/R: 0.63 / 0.82 / 1.06
Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price
Cooled: Water & Oil cooled
Bearing: Ceramics Dual Ball bearing modified journal bearing
Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band
Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G005 | GTX3582R Gen2 | Part Number: 856801-5067S
Assembly Kit Number: 856801-5067S,856801-5068S,856801-5069S,856801-5070S,856801-5071S,856801-5079S,856801-5080S,856801-5081S
Turbine Part Number: 740902-0010,740902-0011,740902-0012,740902-0016,740902-0017,740902-0018,740902-0031,740902-0032,740902-0033
SuperCore Part Number: 851154-5004S
Turbo Model: GTX3582R Gen2
Displacement: 2.0 - 4.5L
HP: 450 - 900
Compressor Wheel Exducer: 82MM
Compressor Wheel Inducer; 66MM
Compressor Wheel Trim; 64
Compressor Wheel A/R; 0.7
Turbine Wheel Exducer; 62MM
Turbine Wheel Inducer; 68MM
Turbine Wheel Trim; 84 |
| EPAA33G006 | GTX2867R GEN II | Part Number: 856800-5005S
Assembly Kit Number: 856800-5005S,856800-5006S,856800-5007S,856800-5008S
Turbine Part Number: 827690-0001,827690-0002,827690-0003,827690-0004
SuperCore Part Number: 849894-5002S
Turbo Model; GTX2867R GEN II
Displacement: 1.4L - 2.5L
HP: 275 - 550
RPM Max: 145000
Compressor Wheel Exducer: 67MM
Compressor Wheel Inducer: 50MM
Compressor Wheel Trim: 55
Compressor Wheel A/R: 0.6
Turbine Wheel Exducer: 47MM
Turbine Wheel Inducer: 54MM
Turbine Wheel Trim: 76 |
| EPAA33G007 | GTX3584RS Gen2 | Part Number: 856804-5001S
Assembly Kit Number: 856804-5001S,856804-5002S,856804-5003S,856804-5004S,856804-5005S,856804-5006S
Turbine Part Number: 740902-0052,740902-0066,740902-0067
SuperCore Part Number: 846098-5001S,846098-5002S
Turbo Model: GTX3584RS Gen2
Displacement: 2.0 - 5.5 L
HP: 550 - 1000
Compressor Wheel Exducer: 84MM
Compressor Wheel Inducer: 67MM
Compressor Wheel Trim: 64
Compressor Wheel A/R: 0.72
Turbine Wheel Exducer: 62MM
Turbine Wheel Inducer: 68MM
Turbine Wheel Trim: 84
Turbine Wheel A/R: 0.83 |
| EPAA33G008 | G35-1050 | Part Number: 880707
Turbo PN: 880707-5005S,880707-5006S
Turbine Part Number: 740902-0108,740902-0107,740902-0106,740902-0105,740902-0104,740902-0103,740902-0102,740902-0112,740902-0113,740902-0114,740902-0115,740902-0116,740902-0117
SuperCore Part Number: 880695-5002S,880696-5002S
Turbo Model: G35-1050
Displacement: 2.0L - 5.5L
HP: 700/1050
RPM Max: 145000 RPM
Compressor Wheel Exducer: 84mm
Compressor Wheel Inducer: 68mm
Compressor Wheel Trim: 65
Compressor Wheel A/R 0.75
Turbine Wheel Exducer: 62mm
Turbine Wheel Inducer: 68mm
Turbine Wheel Trim: 84
Bearing Type: Ceramic Ball Bearing
Bearing Housing: Water Cooled |
| EPAA33G009 | G35-900 | Part Number: 880707
Turbo PN: 880707-5002S,880707-5003S
Turbine Part Number: 740902-0108,740902-0107,740902-0106,740902-0105,740902-0104,740902-0103,740902-0102,740902-0112,740902-0113,740902-0114,740902-0115,740902-0116,740902-0117
SuperCore Part Number: 880695-5001S,880696-5001S
Turbo Model: G35-900
Displacement: 2.0L - 5.5L
HP: 550/900
RPM Max: 145000 RPM
Compressor Wheel Exducer: 76mm
Compressor Wheel Inducer: 62mm
Compressor Wheel Trim: 65
Compressor Wheel A/R 0.72
Turbine Wheel Exducer: 62mm
Turbine Wheel Inducer: 68mm
Turbine Wheel Trim: 84
Bearing Type: Ceramic Ball Bearing
Bearing Housing: Water Cooled |
| EPAA33G010 | GT2876R | Compressor Housing： A/R.70
Cooled： Water cooled and oil cooled
Turbine Housing： A/R.64, or A/R.86 T25 Flange(Inlet) / 5 bolt(Outlet)
Bearing： Journal bearing, or Ceramic Dual ball bearing
Compressor Wheel： Aluminum alloy or Billet Wheel
Performance Rating： 280-480 HP
Recommended Displacement： 1.8 -3.0L
OE NO.: 705330-5001S, 705330-5002S, 705330-0001, 705330-0002, 705330-1, 705330-2, 472560-15, 71847-1, 780371-2 |
| EPAA33G011 | T88 - 33D 49174-00890 | Product: Turbo Charger - T88-33D 15.0 EX Housing 80mm Square Flange
Part No: 11500305
Model: T88
Compressor Wheel: 33D
Exhaust Housing (cm2): 15cm2
Max Boost (kpa): 190 Kpa
Manifold Flange Size (mm): 80mm
Compressor Cover: IN DIA (mm): 100 / OUT DIA (mm): 70
Power Range: KW: 478~552 / PS: 650~750
Compressor Wheel: IN DIA (mm): 70/OUT DIA (mm): 95
Turbine Wheel: OUT DIA (mm): 72.3 /EX DIA (mm): 85
OE NO.: 49174-00890
Part Number: 1,150,030,511,500,320 |
| EPAA33G012 | GT35 GT3582 GT3582R GTX3582R/T3 | Description: Performance turbocharger
Turbo Model: GT35 GT3582 GT3582R GTX3582R
Comp. Housing: A/R.70 customization color or anti-surge
Comp. Wheel: customization material or size
Exhaust Housing: A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material
Inlet/outlet flange: T3 or T4 / 4 Bolt or V Band
Turbine Wheel: customization material or size
Cooled: Water & oil cooled
Wheel Nut: General or color bullet
Backing Plate: Plain or Color by anodizing
Bearing: Journal bearing or ball bearing, need to check |
| EPAA33G013 | 7875 type | Description: Performance turbocharger
Turbo Model: 7875 type
Compressor housing: 0.75 A/R
Compressor wheel: 6+6 Blades
Turbine Housing: 1.32 A/R 0.81, 0.96
Inlet/outlet flange: T4 flange / V Band
Cooled: Water & Oil cooled
Wheel Nut: General or Golden color bullet
Backing Plate: Plain or Color by anodizing |
| EPAA33G014 | GTX3071R | Description: Performance turbocharger
OE NO.: 803712-1
Size: standard
Car Model: Racing car
Turbo Model: GTX3071R
Part No: 803712-1
CHRA: 700177-46
Accepted: Small batch and Mass customization
Price Range: Mid price with high-quality
Sales Pattern B2B, M2C: B2B, M2C |
| EPAA33G015 | GTIII-4R Turbine Turbocharger | Item: Performance turbocharger
OE NO.: GTIII-4R, GT3 turbo, 14001-AK033
Size: Standard Size
Car Model: for modified vehicle
Turbo Model: GTIII-4R Turbine Turbocharger
Turbo Flange: T4,2 port
Accepted: Small batch and Mass customization
Sales Pattern: B2B, M2C
A/R: 0.81 WG
V-band: Φ99.1
Code No.: 14001-AK033 |

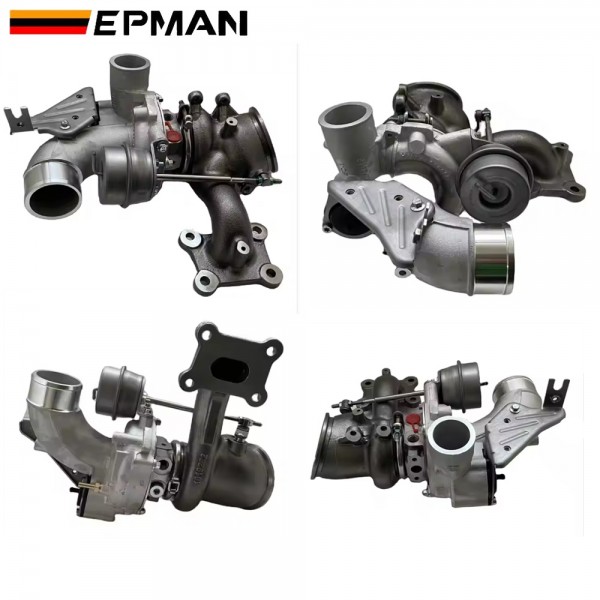

| EPAA33G016 | K03-2080DCB5.88CCAXX, K03 | Part Number: 53039880212
Previous Version: 5303 998 0600, 5303 970 0600, 5303 988 0600, 5303 970 0269, 5303 970 0270, 5303 970 0293, 5303 970 0308, 5303 970 0314, 5303 970 0366, 5303 970 0418, 5303 970 0444, 5303 988 0269, 5303 988 0270, 5303 988 0293, 5303 988 0308, 5303 988 0314, 5303 988 0366, 5303 988 0418, 5303 988 0444, 5303-988-0444
OE number: CB5Z6K682H, CB5E6K682AC, CB5E6K682BA, CB5E6K682BB, CB5E6K682BC, CB5E6K682CC, CB5E6K682BE, CB5E6K682BF
Description: Ford Focus, Galaxy, Kuga, Mondeo, S-max, Explorer, Edge, Lincoln MKZ
Manufacturer: 53039700270, 5303-970-0270
CHRA: 53037100565 (5303-710-0565)(1302003940)
Turbo Model: K03-2080DCB5.88CCAXX, K03
Engine: 2.0 EcoBoost, SCTi
Displacement: 2.0L, 2000 ccm, 4 Cylinders
KW: 177 kW/240 HP
RPM Max: 5000
Fuel: Gasoline
Bearing Housing: 53031504505 (Water Cooled)(1302003461 1900011235I)
Turbine Wheel: 53031208514 (53031208515)(Ind. 44.95 mm Exd. 40.23 mm Trm 7.62 9 Blades)(1302003447 1100016434)
Comp. Wheel: 53041232241 (53041232223)(Ind. 62.65 mm Exd. 94.88 mm 7+7 Blades)(1302003416 1200016319)
Back plate: 53041505709 (53041505701)(1302003305 1300016042)
Heat shield: 53031652009 (53031652015 53031652021 53031652022)(1302003343 2030016037)
Repair Kit: 53037110000 (Major)(Single Feed)(Inc. Trust Parts)(1302003754 5000040005)
Applications:
For Ford Edge with 2.0 EcoBoost Engine 2001-2017
For Ford Focus with 2.0 EcoBoost Engine 2001-2017
For Ford Fusion with 2.0 EcoBoost Engine 2001-2017
For Ford Passenger Car with 2.0 EcoBoost Engine 2001-2017 |
| EPAA33G017 | GT3582 GT3582R GTX3582R GTX3582R-T4 | Type: Performance turbocharger
Turbo Model: GT3582 GT3582R GTX3582R
Compressor Housing: A/R.70 customization color or Anti-surge
Compressor Wheell: Billet wheel 6+6 blades
Turbine Housing: A/R.63, A/R.82, A/R1.06 or others
Turbine Housing Material: Si-Mo Ductile Iron
Turbine Wheel Material: 42CrMoA
Turbine Shaft Material: k18
Bearing: Dual Ceramic turbo Ball bearing peek cage
Configurations Deatails of Performance Turbocharger:GTX3582R-T4 (Model for Ref. only)
Compressor Housing: Black spraying with static With Golden Anti-surge insert
CORE: same as original Garrett data of GT3582R
Cooled: Water cooled and oil cooled
Turbine Housing: T4 Flange(Inlet) / V-Band(Outlet)
Bearing: DUAL CERAMIC BALL BEARING
Back Plate: Self-color or Golden treating
Compressor Wheel: Billet Wheel 6+6 Blades or 11 blades, sIiver, red, blue, gold, purple...
Nut: Normal nut, or Natural color Bullet |
| EPAA33G018 | GT35 TO4E T04E GT35 T66 T4 GT30 | Description： Tuning Turbocharger
Compressor Housing: A/R.70
can be customized color, polish machining, anti-surge type.
Turbo Model: TO4E T04E GT35 T66 T4 GT30(you could chose)
Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast.
Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32
Turbine Wheel: Accepted customization size(Supply sample or drawings)
Cooled: Oil or and Water cooled
Wheel Nut: Buooet or General
Backing Plate: Plain or Color by anodizing
You also can print your own LOGO on your turbochargers by Laser. |
| EPAA33G019 | GT3582R GT35R GT35 BB | Model: GT35R GT35 BB 63 GT3582R Gen1 Gen 2
Compressor Housing A/R: 0.7
Turbine Housing A/R: 0.63 / 0.82 / 1.06
Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price
Cooled: Water & Oil cooled
Bearing: Ceramics Dual Ball bearing
Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band
Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G020 | GT3582R GT35R | Model: GT3582R GT35R GT35 BB Gen1 Gen 2
Compressor Housing A/R: 0.7
Turbine Housing A/R: 0.63 / 0.82 / 1.06
Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price
Cooled: Water & Oil cooled
Bearing: Ceramics Dual Ball bearing
Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band
Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G021 | GT3582 journal bearing turbo | Description Performance turbocharger
Turbo Model GT35 GT3582 GT3582R GTX3582R
Comp. Housing A/R.70 customization color or anti-surge
Comp. Wheel customization material or size
Exhaust Housing A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material
Inlet/outlet flange T3 or T4 / 4 Bolt or V Band
Turbine Wheel customization material or size
Cooled Water & oil cooled
Wheel Nut General or color bullet
Backing Plate Plain or Color by anodizing
Bearing Journal bearing or ball bearing, need to check |
| EPAA33G022 | GTX3582R GT3582R Supercore | Model: GTX3582R GT3582R Gen1 Gen 2
Compressor Housing A/R: 0.7
Turbine Housing A/R: Can fit 0.63 / 0.82 / 1.06 but without turbine housing.
Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price
Cooled: Water & Oil cooled
Bearing: Ceramics Dual Ball bearing
Inlet / Outlet Flange Hot: Cand fit T3/4 Bolt, T3/V Band, T4/V Band
Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G023 | 7875 Turbo | Description: Performance turbocharger
Turbo Model: 7875 type
Compressor housing: 0.75 A/R
Compressor wheel: 6+6 Blades
Turbine Housing: 1.32 A/R 0.81, 0.96
Inlet/outlet flange: T4 flange / V Band
Cooled: Water & Oil cooled
Wheel Nut: General or Golden color bullet
Backing Plate: Plain or Color by anodizing |
| EPAA33G024 | GT35 TO4E T04E GT35 T66 T4 GT30 | Compressor Housing: A/R.70 customized, T51R modified rod, anti-surge
can be customized color, polish machining, anti-surge type.
Turbo Model: GT35 TO4E T04E GT35 T66 T4 GT30
Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast.
Turbine Housing: A/R.63, A/R.82, A/R1.06 A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32
Turbine Wheel: Accepted customization size(Supply sample or drawings)
Cooled: Oil or and Water cooled
Wheel Nut: Buooet or General
Backing Plate: Plain or Color by anodizing |
| EPAA33G025 | TO4Z | Model: TO4Z
Compressor Housing : A/R.70
Compressor Wheel(in/out): 61.4-82
Turbine Housing : A/R1.00
Turbine Wheel(out/in): 64.5-73.8
Cooled: Water&Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: External
Inlet :T4 flange
Outlet :V band |

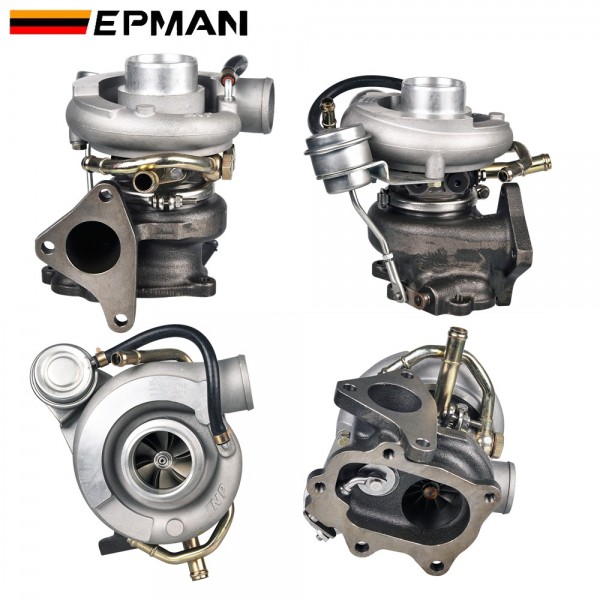

| EPAA33G026 | TD05H 20G | Model: TD05H 20G
Cooled: Water&Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: Internal westergate
Exhaust Inlet : 5 bolts
Exhaust Outlet :3 bolts
Application: Subaru |
| EPAA33G027 | GTX3582R GT3582R | Model: GTX3582R GT3582R Gen1 Gen 2
Compressor Housing A/R: 0.7
Turbine Housing A/R: 0.63 / 0.82 / 1.06
Turbine housing material Si-mo Nodular iron cast, or heat-resistance stainless steel, different price
Cooled: Water & Oil cooled
Bearing: Ceramics Dual Ball bearing
Inlet / Outlet Flange Hot: T3/4 Bolt, T3/V Band, T4/V Band
Compressor Wheel: Aluminum cast alloy, Billet wheel, Color Billet wheel |
| EPAA33G028 | GT2867R wastegate internal | Configurations Deatails of Performance Turbocharger:
GT2867RR Actuator (Model for Ref. only)
Compressor Housing: A/R.60
Cooled: Water cooled and oil cooled
Turbine Housing: A/R.64, A/R.86 T25 Flange(Inlet) / 5 bolt(Outlet)
Bearing: Journal bearing, or Dual ball bearing
Compressor Wheel: Aluminum alloy or Billet Wheel |
| EPAA33G029 | TO4E T3 T3-B | Model:TO4E T3 T3-B
Compressor Housing : A/R.50
Compressor Wheel(in/out): 54.3-82mm
Turbine Housing : A/R.48
Turbine Wheel(out/in): 49-65mm
Cooled: Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: External
Inlet : T3 flange
Outlet : 4 Bolt |
| EPAA33G030 | TO4E T4 T4-68 | Model: TO4E T4 T4-68
Compressor Housing : A/R.70(T04E)
Turbine Housing : A/R.68 V Band
Cooled: Oil only, or Water&Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: External
Inlet :T4 flange
Outlet :V band |
| EPAA33G031 | GT35-4 | Direct Manufacture GT35-4 Performance Turbo
Compressor Housing A/R.70 double inlet
Turbine Housing A/R.63 Exaust side outlet 5 Bolts
T3 Flange hot side inlet |
| EPAA33G032 | T51R | Configurations Deatails of Performance Turbocharger:
Compressor Housing : T51R
Compressor Wheel(in/out): 76.5-102.4 billet
Turbine Housing : A/R1.00-2V
Turbine Wheel(out/in): 71.4-82.0
Cooled: Water&Oil cooled
Bearing: Journal bearing only
Thrust bearing: 360°
Actuator: External
Inlet : V-Band
Outlet : V-Band |
| EPAA33G033 | T3T4 | Model: GT3540 (Model for Ref. only)
Compressor Housing : A/R.50
Turbine Housing : KKK
Cooled: Water&Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator : External
Inlet :T3 flange divided
Outlet :4 Bolt |
| EPAA33G034 | TO4E T04E GT35 T66 T4 GT30 | Compressor Housing: A/R.70
can be customized color, polish machining, anti-surge type.
Turbo Model: TO4E T04E GT35 T66 T4 GT30
Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast.
Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32
Turbine Wheel: Accepted customization size(Supply sample or drawings)
Cooled: Oil or and Water cooled
Wheel Nut: Bullet or General
Backing Plate: Plain or Color by anodizing |
| EPAA33G035 | GT42 GT4202 GT4294 | Part No.: 731376-5002
Compressor Housing : A/R.60
Compressor Wheel(in/out): aluminum alloy or customize billet
Turbine Housing : A/R1.05
Cooled: Oil only
Bearing: Journal bearing
Thrust bearing: 360°
Actuator:External
Inlet : T4 flange divided
Outlet : 6 Bolt |

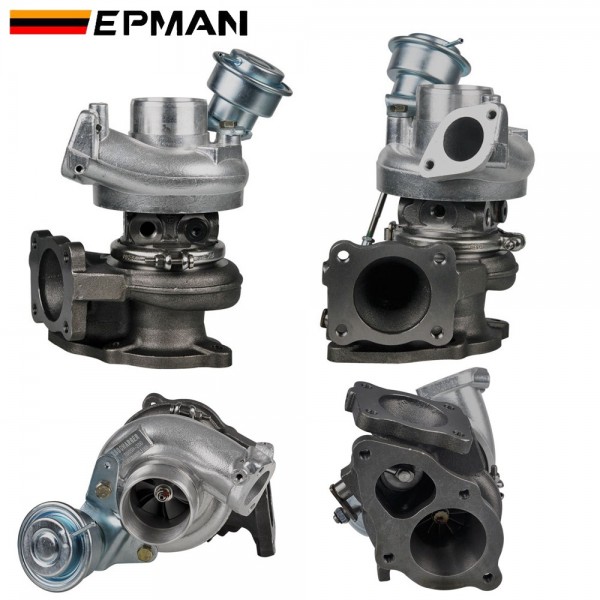

| EPAA33G036 | EJ20, EJ25, 4G63 | Compressor Wheel(in/out): 52.56-68mm
Turbine Wheel(out/in): 56-65mm
Cooled: Water&Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: Internal |
| EPAA33G037 | GT2871 wastegate internal | Configurations Deatails of Performance Turbocharger:
GT2871 GT2871R Actuator (Model for Ref. only)
Compressor Housing: A/R.60
Cooled: Water cooled and oil cooled
Turbine Housing: A/R.64, A/R.86 T25 Flange(Inlet) / 5 bolt(Outlet)
Bearing: Journal bearing, or Dual ball bearing
Compressor Wheel: Aluminum alloy or Billet Wheel
OE NO. 472560-15, 771847-1, 780371-2, 707160-10, 743347-1, 743347-3, 743347-2, 743347-4 |
| EPAA33G038 | GT3582-18 | Type: Performance turbocharger
OE NO.： GT3582, GT35, T3
Turbo Model： GT3582-18
Compressor housing： T04EA/R.70 Anti surge
Compressor wheel： billet wheel 61.4/82mm
Turbine housing： A/R.82
Turbine wheel： 62.3/68mm
Turbine wheel Blades： 10 blades
Inlet： T3 flange
Outlet： 4 Bolt
Cooled； water & oil cooled |
| EPAA33G039 | WGT30-4 | Type: Performance turbocharger
OE NO.： GT30, WGT30, T3T4
Turbo Model： WGT30-4
Compressor housing： A/R.70 Anti Surge 61.4/82mm
Turbone housing： A/R.48
Turbine wheel： 49/65mm
Cooled： Water & Oil cooled
Bearing： Journal bearing
Actuator： Internal
Inlet： T3 flange
Outlet： V-BAND-79mm |
| EPAA33G040 | T3 T3-6082 | Type: Performance turbocharger
Model: T3 -6082 (Model for Ref. only)
Compressor Housing : A/R.60
Compressor Wheel(in/out): 54.13-70mm
Turbine Housing : A/R.82
Turbine Wheel(out/in): 56-65.15mm
Cooled: Oil cooled only
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: External
Inlet : T3 flange
Outlet : V BAND |
| EPAA33G041 | GT3582 wastegate internal | Type: Performance turbocharger
Configurations Deatails of Performance Turbocharger:
GT3582- T3 actuator (Model for Ref. only)
Turbo Model：GT3582 wastegate internal
Compressor Housing: A/R.50
General nut or Golden nut
CORE: same as original Garrett data of GT3582
Cooled: Water cooled and oil cooled
Turbine Housing: T3 Flange(Inlet) / 5 bolt(Outlet)Bearing: Journal bearing
Back Plate: Silver or Color treating
Compressor Wheel: Aluminum alloy or Billet Wheel With gaskets |
| EPAA33G042 | GT3582-T4 | Turbo Model GT3582-T4
Compressor housing T04EA/R.70
Compressor wheel Billet 6+6 blades wheel 61.4/82mm
Cooled Water & Oil Cooled
Turbine housing A/R.82,T4,V-BAND
Turbine wheel 62.3/68mm
Bearing Dual Ball Bearing
Back Plate: Plain or color by anodizing
Compressor NUT: General or Bullet |
| EPAA33G043 | T78 | Type: Performance turbocharger
OE NO. 49174-00890, T78
Car Model Universal
Turbo Model T78
Compressor Billet wheel 63/92mm
Turbine wheel 72.5/84.5mm
Cooled Type Oil Cooled
Bearing Journal bearingc
Inlet T4 flange twohole
Outlet V BAND-97mm |
| EPAA33G044 | GT45R | Description： Tuning turbocharger
Turbo Model： GT45R
Comp. Housing： A/R.70 anti-surged
Comp. Wheel： Aluminum alloy, or 5-axis Billet
Exhaust Housing： A/R1.00
Inlet/outlet flange： T4 Split hole / V-Band
Turbine Wheel： customization material or size
Cooled： Water & Oil Cooled
Wheel Nut： General
Backing Plate： Plain silver color |
| EPAA33G045 | T4 Turbo | Compressor Housing: A/R.70
can be customized color, polish machining, anti-surge type.
Turbo Model: TO4E T04E GT35 T66 T4 GT30
Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast.
Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32
Turbine Wheel: Accepted customization size(Supply sample or drawings)
Cooled: Oil or and Water cooled
Wheel Nut: Buooet or General
Backing Plate: Plain or Color by anodizing |
| EPAA33G046 | GT35 turbo | Configurations Deatails of Performance Turbocharger: GT35 (Model for Ref. only)
Compressor Housing:A/R.70 T04E TO4E With Golden Anti-surge
CORE: same as original Garrett data of GT35
Cooled: Water cooled and oil cooled
Turbine Housing: T4 Flange Split(Inlet) / V-Band(Outlet)
Bearing: Floating bearing
Back Plate: Self-color or Golden treating
Compressor Wheel: Aluminum alloy Wheel 6+6 Blades or 11 blades
Nut: Natural color Bullet |
| EPAA33G047 | GTx3584 GT3584R GTX3584R | Description： Performance turbocharger
Turbo Model： GTx3584 GT3584R GTX3584R
Comp. Housing： A/R.70 customization color or anti-surge
Comp. Wheel： customization material or size Billet 11 blades or Aluminum alloy
Exhaust Housing： A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material
Inlet/outlet flange： T3 or T4 / 4 Bolt or V Band
Turbine Wheel： customization material or size
Cooled： Water & oil cooled
Wheel Nut： General or color bullet
Backing Plate： Plain or Color by anodizing |
| EPAA33G048 | T4 Turbo T4R T4-8096 | Description： Tuning turbocharger
Turbo Model： T4 Turbo T4R T4-8096
Comp. Housing： A/R.80 customization color
Comp. Wheel： customization material or size
Exhaust Housing： A/R.96, A/R.68, A/R.81, A/R1.00, A/R1.15, A/R1.32
Inlet/outlet flange： T4 / V Band
Turbine Wheel： customization material or size
Cooled： Water & or oil cooled
Wheel Nut： General o
Backing Plate： Plain or Color by anodizing |
| EPAA33G049 | TD05 20G | Compressor Housing : Casting Aluminum Alloy
Compressor Wheel(in/out): 52.56-68
Turbine Housing : Simo Nodular cast iron
Turbine Wheel(out/in): 48.85-55.8
Cooled: Water&Oil cooled
Bearing: Journal bearing
Thrust bearing: 360°
Actuator: Internal
inlet/outlet Flange : 3 Bolt/5 Bolt |
| EPAA33G050 | TO4E T04E GT35 T66 GT30 | Compressor Housing: A/R.70
can be customized color, polish machining, anti-surge type.
Turbo Model: TO4E T04E GT35 T66 T4 GT30
Compressor Whell: Size can be customized, Material can be made Billet or Aluminum cast.
Turbine Housing: A/R.68, A/R.81, A/R.82, A/R.84, A/R1.00, A/R1.15, A/R1.32
Turbine Wheel: Accepted customization size(Supply sample or drawings)
Cooled: Oil or and Water cooled
Wheel Nut: Buooet or General
Backing Plate: Plain or Color by anodizing
You also can print your own LOGO on your turbochargers by Laser. |
| EPAA33G051 | GT35 GT3582 GT3582R GTX3582R-T3 | Description: Performance turbocharger
Turbo Model: GT35 GT3582 GT3582R GTX3582R
Comp. Housing: A/R.70 customization color or anti-surge
Comp. Wheel: customization material or size
Exhaust Housing: A/R.63, A/R.82 A/R1.06 select inlet/outlet flange and material
Inlet/outlet flange: T3 / 4 bolt can be customized
Turbine Wheel: customization size Shaft K18
Cooled: Water & oil cooled
Wheel Nut: General or color bullet
Backing Plate: Plain or Color by anodizing |
| EPAA33G052 | GT35 GT3582R Dual Ball Bearing | Item: GT35 GT3582R Dual Ball Bearing Turbocharger
Compressor Housing: A/R.70 Anti-surge
Compressor Wheel: Aluminum alloy, size can be customized, or 5 anxis billet and colored
Exhaust housing: A/R.63, A/R.82, A/R1.06
Turbine Wheel: Size can be customized
Turbine Shaft: K18
Inlet/ Outlet Flange: T3 Flange / 4 bolt
Cooled: Water& Oil cooled |

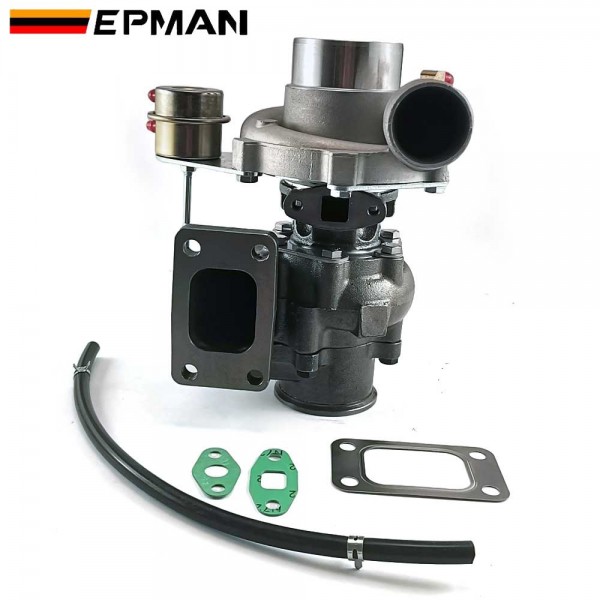

| EPAA33G053 | GTX3584R | GTX3584R GT3584R Turbocharger with Ceramic Dual Ball Bearing T3 or T4 flange
High quality Billet Compressor Wheel (11 blades 64mm-84mm)
Compressor housing：A/R.70
Turbine Housing：A/R.82
Turbo Model: GTX3584R
Bearing: Dual Ball Bearing
Compressor Wheel: Billet Wheel
Compressor Wheel Dia: 64mm-84mm
Compressor Wheel Blade: 11 blades
Cooled: Water&Oil cooled
Inlet Flange: T3 or T4 flange
Exhaust: V-Band or 4 Bolt |
-300x300.jpg "EPMAN -3AN AN3 Blue Turbo Oil Feed Restrictor Fitting for T25/T28 or GT25R GT28R GT30R Aluminum EP-CGQ156")
-300x300.jpg "EPMAN -3AN AN3 Blue Turbo Oil Feed Restrictor Fitting for T25/T28 or GT25R GT28R GT30R Aluminum EP-CGQ156")
-300x300.jpg "EPMAN -Racing Sport T304 1\"Stainless Steel O2 / Oxygen Sensor Exhaust Bung (18mm x 1.5) W/plug EP-CGQ216")
-300x300.jpg "EPMAN -Racing Sport T304 1\"Stainless Steel O2 / Oxygen Sensor Exhaust Bung (18mm x 1.5) W/plug EP-CGQ216")
-300x300.jpg "EPMAN -Turbo Boost Pressure Quick Tap Fitting Kit / Pressure Source on Silicon Hose EPCGQ145")
