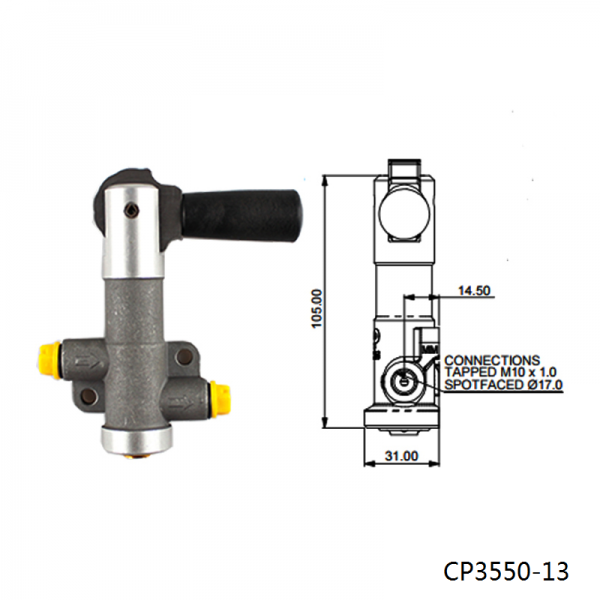

Single Bore - CP3550-13 Lever type brake proportioning valve with 7 settings With Ap Logo CP3550-13
  • Stock: In Stock
  • Model: CP3550-13
  • Weight: 1.00kg
  • SKU: CP3550-13
$42.00

Single Bore - CP3550-13 Lever type brake proportioning valve with 7 settings With Ap Logo CP3550-13

The lever type proportioning valve CP3550-13 provides the driver with 7 distinct settings from which to produce the most suitable braking ratio.

General Information:
Installation
To obtain the best performance using this valves, the brake balance should be biased towards the rear so that with the valve piped
in to the rear line and set in position 7 where virtually no reductions occurs, the balance is as much to the rear as will ever be needed.
Moving the control lever to a lower setting will progressively reduce the rear line pressure giving more bias to the front, for use when more grip is available.

Nominal Ratio of 0.325.

Note:-
This proportioning valves is suitable for use with any brake fluid that conforms to DOT 3, DOT 4 or DOT 5.1 standards, but best all round performance will be achieved with AP Racing 600 brake fluid.

Warning
Due to internal adjustments set by AP Racing, do not strip these assemblies. Do NOT attempt any modification of these valves. Strictly for competition use only.
