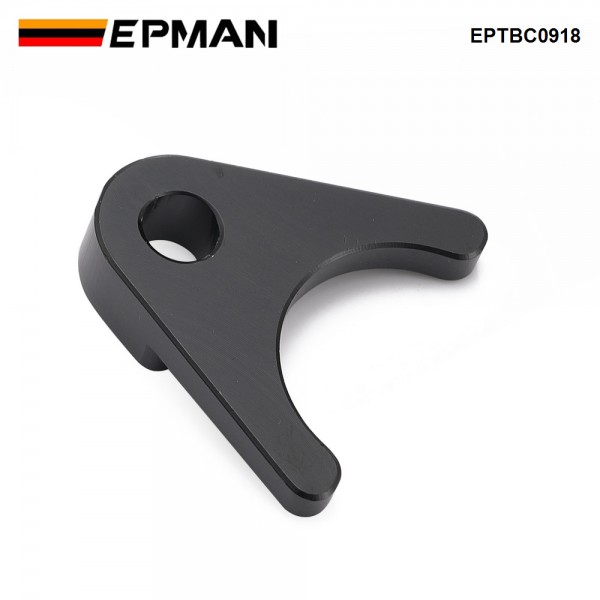

EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918

EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918

Product in category: ENGINE PARTS - Engine Accessories

EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918
  • Stock: In Stock
  • Reward Points: 1
  • Model: EPTBC0918
  • Weight: 0.15kg
$1.40
50 or more Additional 4.07% Off
( Additional 4.07% Off)
You are buying on 100% Brand New of:


EPMAN Racing LS Engine Oil Pump Pickup Retainers Tube Brace Clamp/Girdle For Engine 4.8 5.3 6.0L LS LS1 LS2 LS3 EPTBC0918


Features & Benefits:

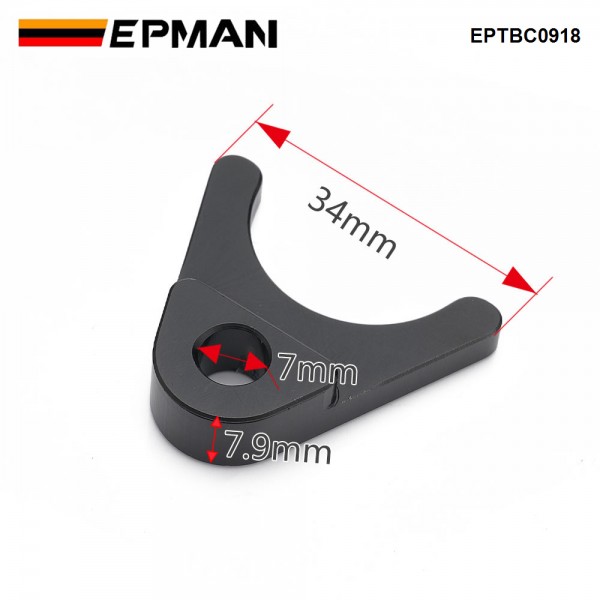

Machined from lightweight 6061-T6 aluminum, black anodized and laser-marked
Distributes even clamping force around pickup tube flange by acting as an extension of the flange
High-strength grade 8.8 M6 flange screws

Applications:
Make: For CHEVROLET
Engine Type: V8
Year: 1997-2018
For Chevy small block Gen III/IV (LS-based engines)
For  GM Gen III & IV LS family engines, wet-sump only
LS1 LS3 LS2 / 4.8L 5.3L 6.0L 6.2L

DOES NOT fit GM pickup tube, part # 12608593
DOES NOT fit pickup tubes with two screw holes on their flange (Holley 302-2 tube and similar tubes).
IMPORTANT Notes: Does NOT fit pickup tubes with retainer tabs, welded flanges, or 2 screw holes on the flange.


Package Included:

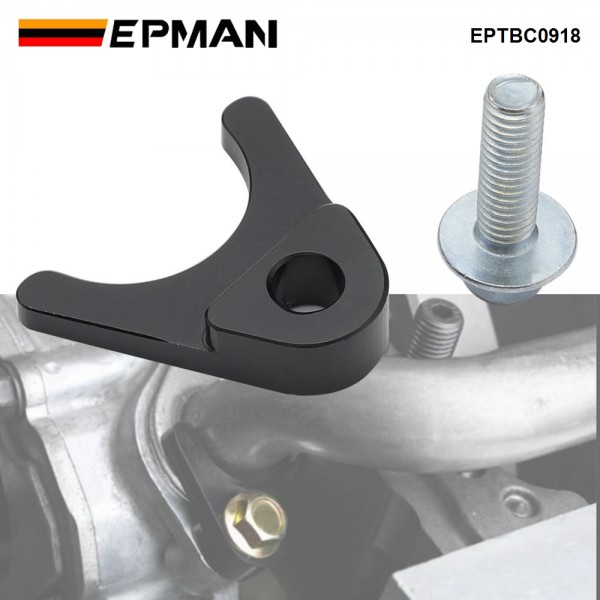

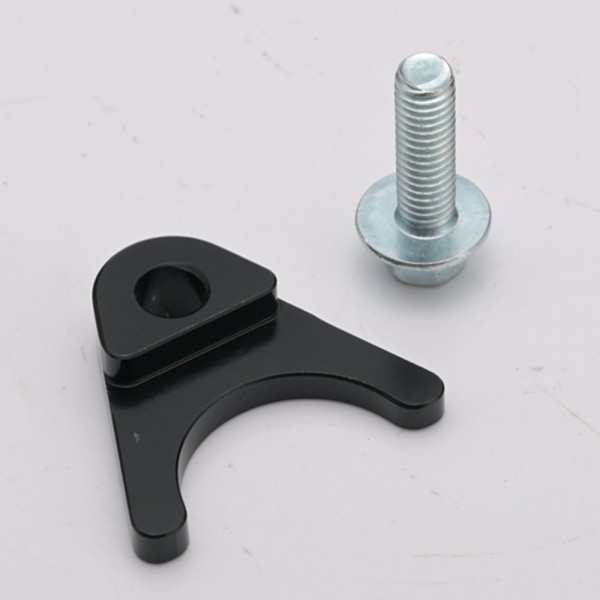

1 x Brace + 1 Bolt  ( as the picture show)

Why you chose Aluminum Brace ?

Improve the reliability and performance of your LS oiling system with this simple brace!
Improved Racing's billet aluminum brace improves the pickup tube O-ring seal by ensuring equal clamping force is exerted to both sides of the oil pickup tube flange.

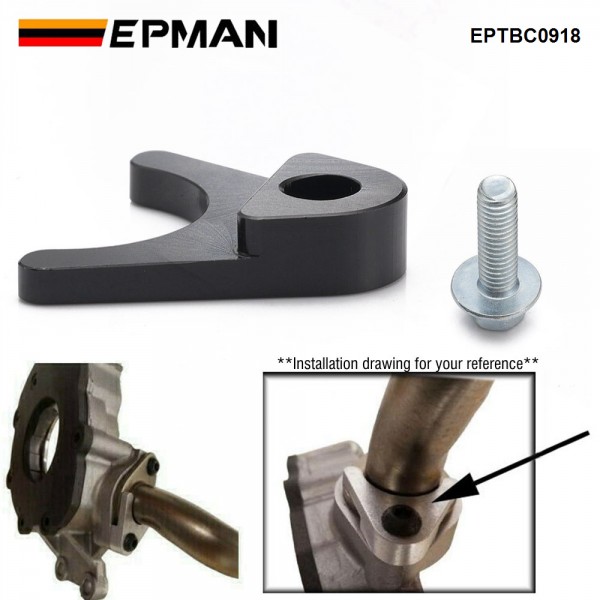

This brace uses the unused extra screw hole in the oil pump and is 100% bolt-on. Coupled with high-strength steel flange screws, it will keep your pickup tube in place and leak-free lap after lap.


We only sell style and quality, We sell the Orignal EPMAN Brand.
All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions. We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
