You are buying on 100% Brand New of:

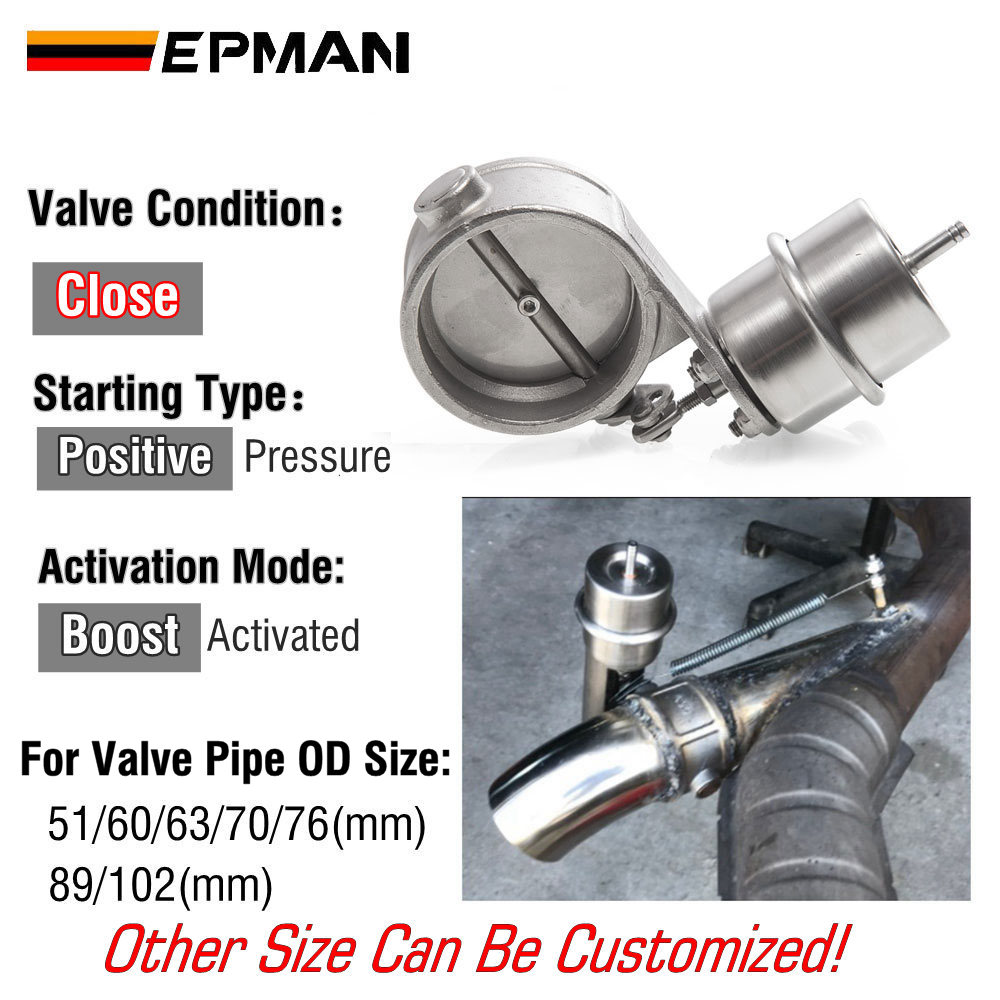

EPMAN New Boost Activated Exhaust Cutout / Dump 51mm/60mm/63mm/70mm/76mm/89mm/102mm Close Style Pressure: About 1 BAR

Item Name:Exhaust Control Valve Set

Exhaust Cutout Close Style QTY: 1PC

Starting Type: Positive Pressure
Material Type: Made of Stainless steel 304
The pressure range: -2 psi - 5.5 psi

Pressure: About 1 BAR
Part Name: Electric Exhaust Catback Downpipe Cutout System

Replace Name: Down Middle Axle Pipe Back Muffler

Exhaust Cutout Valve Condition: Close

The valve is CLOSE at free condition

Available Diameter of Butterfly Valve: 51mm(2"), 60mm(2.35"), 63mm(2.5"), 70mm(2.75"), 76mm(3"), 89mm(3.5"), 102mm(4")
Fit With Exhaust Cutout Valve Pipe OD(approx.): 51mm(2"), 60mm(2.35"), 63mm(2.5"), 70mm(2.75"), 76mm(3"), 89mm(3.5"), 102mm(4") as blw:

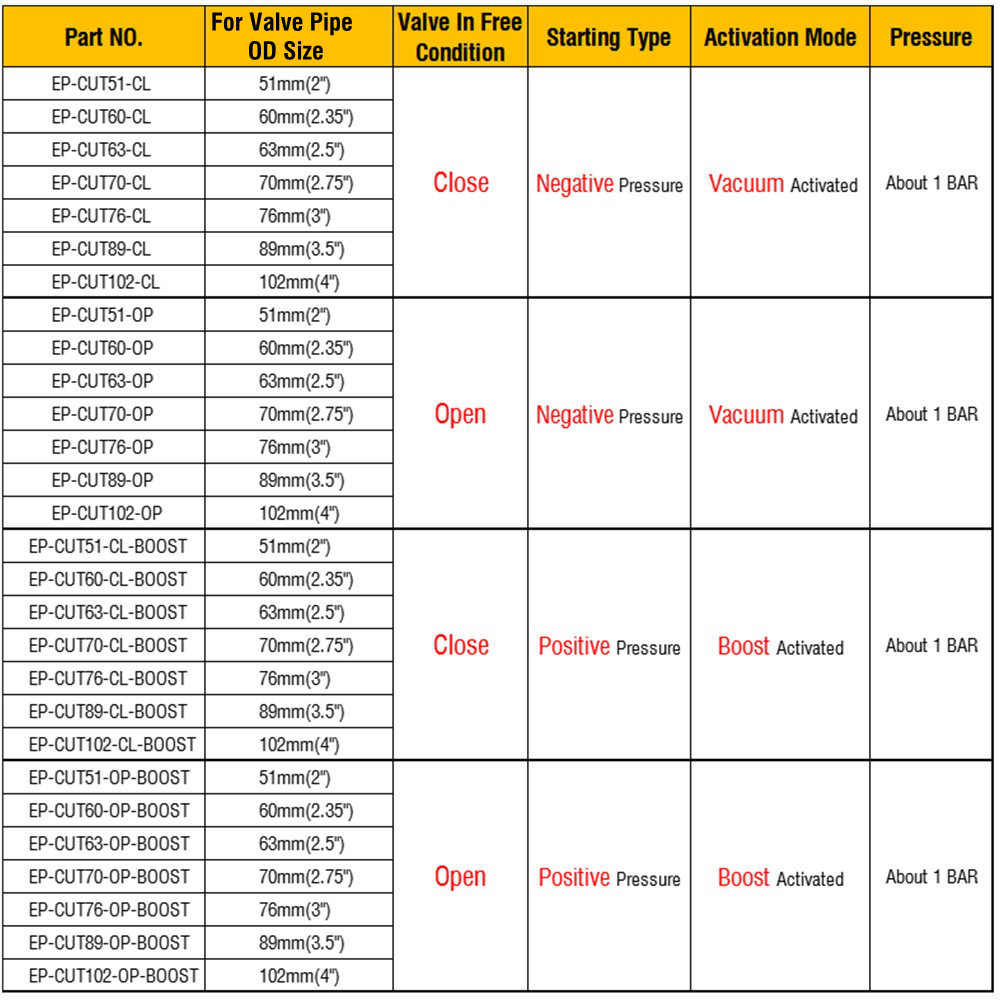

Part NO.	Fit Valve Pipe OD Size	Valve In Free Condition	Starting Type	Activation Mode	Pressure
EP-CUT51-CL	51mm(2")	Close	Negative Pressure	Vacuum Activated	About 1 BAR
EP-CUT60-CL	60mm(2.35")
EP-CUT63-CL	63mm(2.5")
EP-CUT70-CL	70mm(2.75")
EP-CUT76-CL	76mm(3")
EP-CUT89-CL	89mm(3.5")
EP-CUT102-CL	102mm(4")
EP-CUT51-OP	51mm(2")	Open	Negative Pressure	Vacuum Activated	About 1 BAR
EP-CUT60-OP	60mm(2.35")
EP-CUT63-OP	63mm(2.5")
EP-CUT70-OP	70mm(2.75")
EP-CUT76-OP	76mm(3")
EP-CUT89-OP	89mm(3.5")
EP-CUT102-OP	102mm(4")
EP-CUT51-CL-BOOST	51mm(2")	Close	Positive Pressure	Boost Activated	About 1 BAR
EP-CUT60-CL-BOOST	60mm(2.35")
EP-CUT63-CL-BOOST	63mm(2.5")
EP-CUT70-CL-BOOST	70mm(2.75")
EP-CUT76-CL-BOOST	76mm(3")
EP-CUT89-CL-BOOST	89mm(3.5")
EP-CUT102-CL-BOOST	102mm(4")
EP-CUT51-OP-BOOST	51mm(2")	Open	Positive Pressure	Boost Activated	About 1 BAR
EP-CUT60-OP-BOOST	60mm(2.35")
EP-CUT63-OP-BOOST	63mm(2.5")
EP-CUT70-OP-BOOST	70mm(2.75")
EP-CUT76-OP-BOOST	76mm(3")
EP-CUT89-OP-BOOST	89mm(3.5")
EP-CUT102-OP-BOOST	102mm(4")

Please make sure your all dimensions before place order.

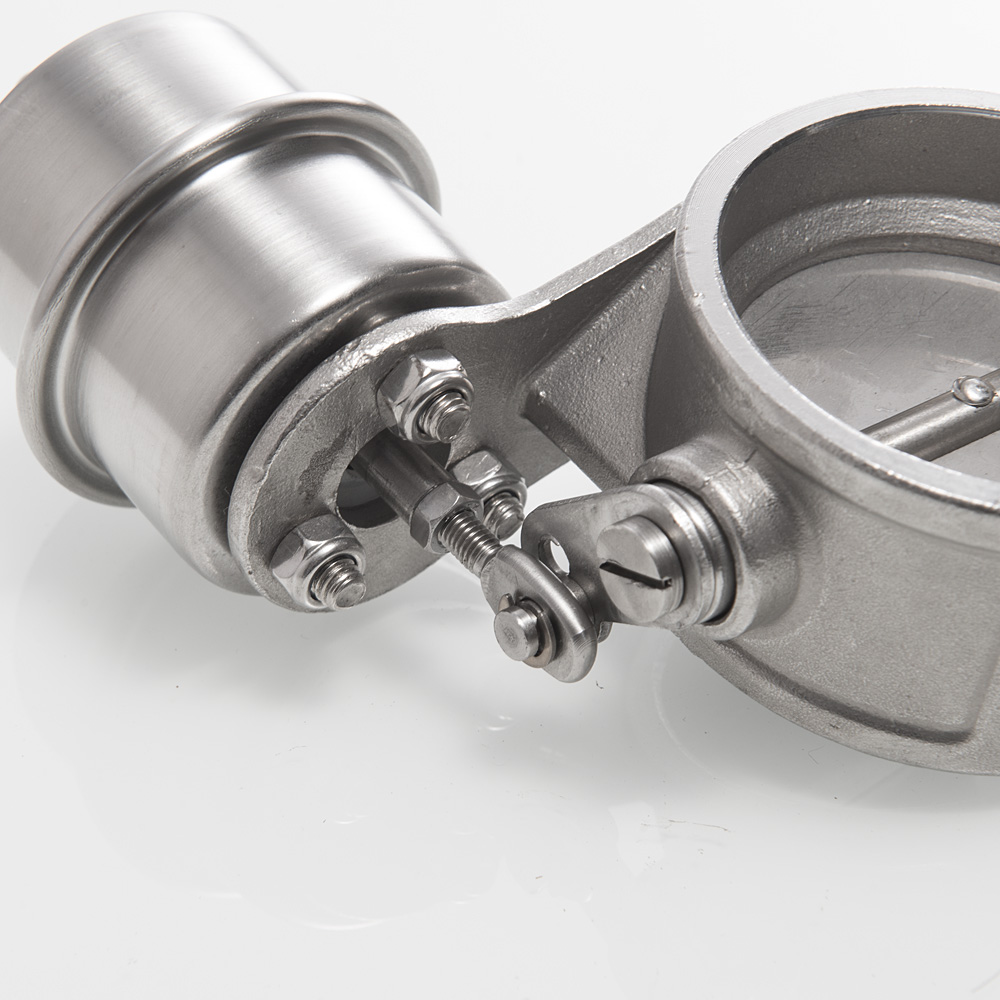

Rod end bearing linked between actuator and gate lever
We are professional High-Performance racing parts manufacture.

welcome to contact us for customized racing parts and wholesale discount!

All items are Brand New unless stated otherwise on the listing. We sell DIY (Do It Yourself) Items with a few exceptions. We take no responsibility in teaching you how to install. Professional installation is strongly recommended.
